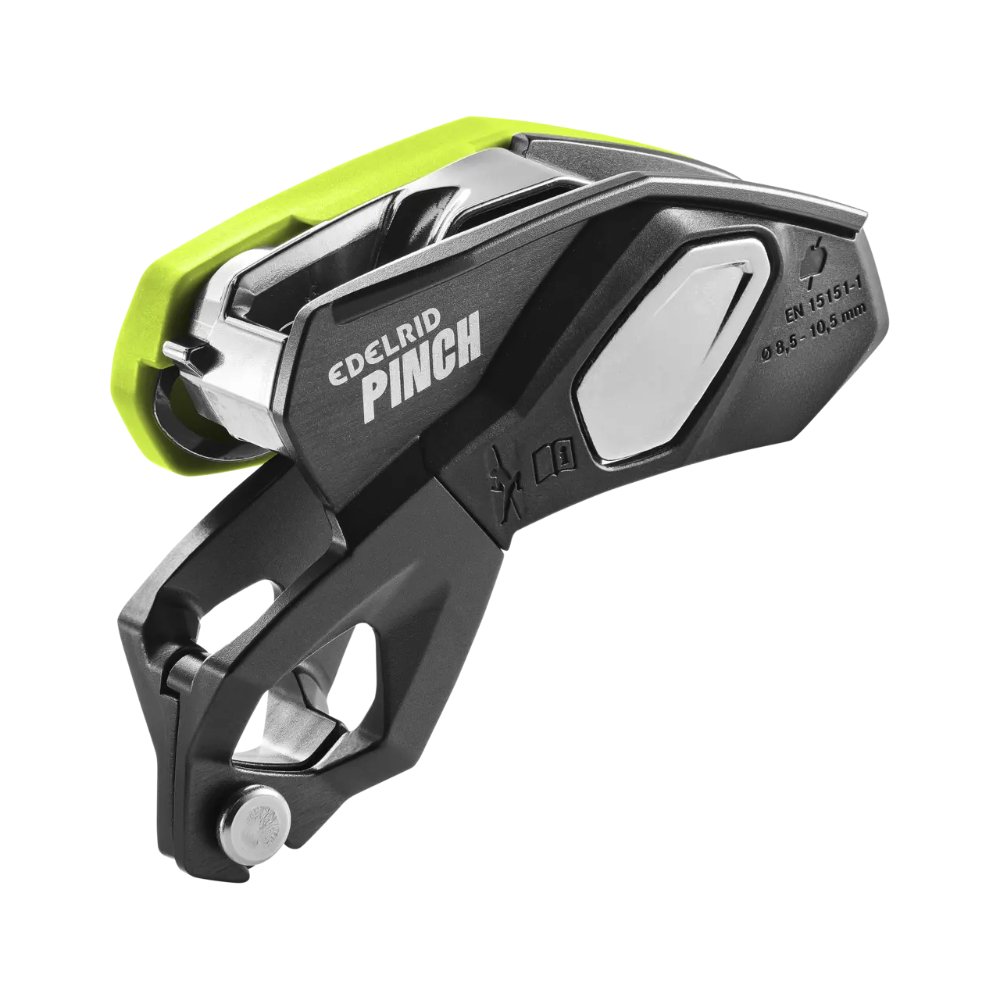

Edelrid Pinch

Edelrid Pinch Belay Device

Pinch - a new belaying experience with the PINCH, a new, versatile assisted braking belay device for use in sport climbing, multi-pitch climbing and rope access techniques. The PINCH is the first device on the market that can be attached directly to the central ring of the climbing harness. Thanks to its low, close-to-the-body position, the PINCH does not need to be fixed in place when releasing the rope and the brake rope can always be gripped with all fingers. In addition, the compact belay system provides an increased span, which allows the belayer to pay out 20 - 30 cm more rope at once. The linear rope run through the frontal steel braking grooves reduces rope tangles when lowering and abseiling. In addition to the lowering lever, the speed can be controlled by the pressure of the braking hand, which contributes to increased braking rope control, especially when using thin, soft ropes. The anti-panic function provides added safety not only for beginners. A special feature is the integrated second braking tier, which enables controlled lowering by pulling the lowering lever further when securing particularly light persons or in systems with high rope friction. Users and experienced rope access technicians can permanently deactivate the anti-panic function using a screw supplied. Another plus: When used on multi-pitch lengths, the PINCH is the only device on the market that can be attached to the belay station in four different directions in 90° increments. This means that the lowering lever can always be brought into a position in which it can be operated freely.

Features

Assisted braking belay device for versatile use in sport climbing, multi-pitch climbing and rope access

Position close to the body due to direct harness attachment increases brake rope control and improves usability

Direct harness attachment eliminates the risk of cross-loading the belay carabiner

Deactivatable anti-panic function for increased safety by automatically locking the device if the lowering lever is pulled too far backwards

Second braking tier if the anti-panic function is activated too frequently due to insufficient load and/or excessive rope friction

Frontal steel brake grooves allow the rope to run linearly and ensure less rope tangling, increased durability and prevent unsightly discoloration that occurs when the rope rubs against aluminium

Attachment to the belay station in four different directions in 90° increments

Equal operation for right and left-handed users

Suitable for static ropes from 10.0 to 10.5 mm diameter (120 kg max. user weight)

Suitable for dynamic ropes from 8.5 to 10.5 mm diameter
